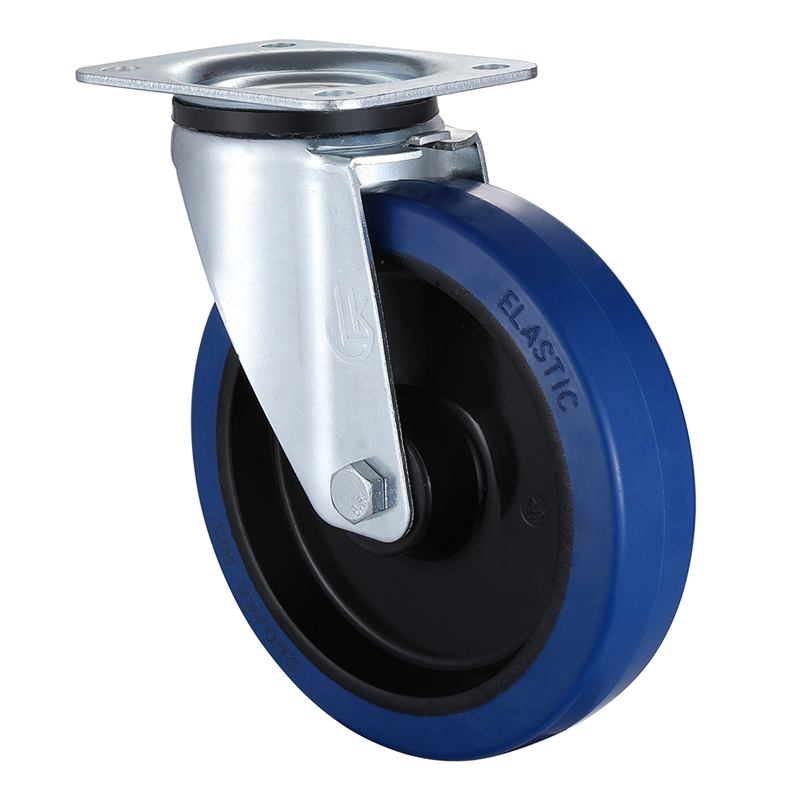

Swivel Castor 100mm Load 180kg Elastic rubber wheels
Industrial Castors - Swivel Castors
Description:
Elastic rubber castors have the advantages of quiet, high load-bearing and shock absorption, making them a cost-effectiv···
If you are interested in this castor, send email us.Stock available, can be sent within 24 hours.We'll give you some discounts.
Select Another Housing
Description:
Elastic rubber castors have the advantages of quiet, high load-bearing and shock absorption, making them a cost-effective choice.
Elastic rubber castors are quiet, shock absorbing and provide a cushioned ride for fragile loads. They maneuver well over small obstacles, and have a strong resistance to wear and tear.
The castor bracket is made of stamped steel and galvanized. The turntable support with double balls ensures smooth rotation without jamming.
Housing bracket
Fork made of pressed steel, Zinc-plated
Swivel head with double ball race and sealing, double balls ensure excellent rotational maneuverability
Wheel :
Elastic rubber tread, Shore A 68+5
Black polyamide wheel centre with Roller bearing
Technical data
Castor Number
LAPS100A36EBRX
Wheel diameter
100 mm
Overall height
125 mm
Load capacity
180 kg
Wheel width
36 mm
Size of Plate
105x80 mm
Plate hole centres
80x60 mm
Plate hole
11x9 mm
Offset
36 mm
Speed
4km/H
Temperature
-20 to +80℃
Standard
EN 12532
Housing
Swivel Castors
